rune::Animator Class Reference

This class is used to animate a rune::GameObject. More...

#include <animator.h>

Inheritance diagram for rune::Animator:

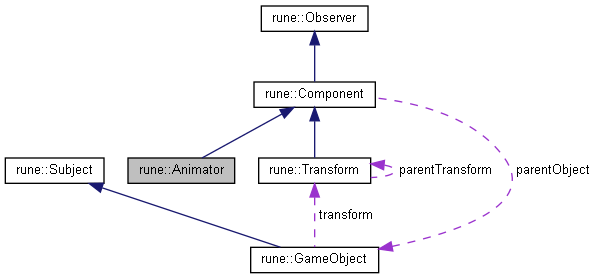

Collaboration diagram for rune::Animator:

Public Member Functions
	Animator ()
	Default constructor to initialize an empty animation.
void	start () override
	Function override for component startup.
void	playAnimation (std::string const &animationName)
	Play an animation stored in the controller. More...
void	addAnimation (std::string const &animationName, int frameWidth, int startFrame, int numFrames, int frameRate, std::string const &fileName)
	Add an animation to the controller. More...
void	addAnimation (std::string const &animationName, int frameWidth, int numFrames, int frameRate, std::string const &fileName)
	Add an animation to the controller that defaults to zero being the first frame. More...
ObjectAnimation *	getAnimation (std::string const &name)
	Get a pointer to the specified animation. More...
Public Member Functions inherited from rune::Component
	Component ()=default
	Default constructor to set up.
virtual void	awake ()
	A function that will be called before all other start functions but after the component has been assigned to a GameObject.
virtual void	update ()
	A function for each component that is called every frame.
virtual void	fixedUpdate ()
	A function for each component that is called once every physics update.
void	setParent (GameObject *newParent)
	A function to set the pointer to the parent rune::GameObject for each component. More...
void	setEnable (bool newEnable)
	Enable or disable the component. More...
bool	isComponentEnabled (void)
	Gets whether or not the current component is enabled.
void	onNotify (Signal const &signal) override
	A virtual method to be overridden by a concrete implementation of the observer class.

Additional Inherited Members
Protected Attributes inherited from rune::Component
GameObject *	parentObject = nullptr
	The rune::GameObject that this component is attached to. If not attached to a rune::GameObject this will equal nullptr.
bool	isEnabled = true
	Whether or not the component is currently enabled. If not enabled, update function will not be called.

Detailed Description

This class is used to animate a rune::GameObject.

Author

Thomas Montano

Date

July 22 2020

Member Function Documentation

addAnimation() [1/2]

void rune::Animator::addAnimation	(	std::string const &	animationName,
		int	frameWidth,
		int	numFrames,
		int	frameRate,
		std::string const &	fileName
	)

Add an animation to the controller that defaults to zero being the first frame.

Parameters

animationName	The name of the animation to be referred to later when playing.
frameWidth	The width of each frame of animation.
numFrames	The total number of frames in the sprite sheet.
frameRate	The rate that the frames should be displayed (in frames per second)
fileName	The name of the file containing the sprite sheet.

Warning

Do not call this in an rune::GameObject constructor. The spriteParent pointer must be resolved first.

addAnimation() [2/2]

void rune::Animator::addAnimation	(	std::string const &	animationName,
		int	frameWidth,
		int	startFrame,
		int	numFrames,
		int	frameRate,
		std::string const &	fileName
	)

Add an animation to the controller.

Parameters

animationName	The name of the animation to be referred to later when playing.
frameWidth	The width of each frame of animation.
startFrame	The frame that the animation should start on.
numFrames	The total number of frames in the sprite sheet.
frameRate	The rate that the frames should be displayed (in frames per second)
fileName	The name of the file containing the sprite sheet.

Warning

Do not call this in an rune::GameObject constructor. The spriteParent pointer must be resolved first.

getAnimation()

rune::ObjectAnimation * rune::Animator::getAnimation

(

std::string const &

name

)

Get a pointer to the specified animation.

Parameters

name	The name of the animation to be returned.

Returns

A pointer to the animation that was requested.

playAnimation()

void rune::Animator::playAnimation

(

std::string const &

animationName

)

Play an animation stored in the controller.

Parameters

animationName

The name of the animation to play.

Warning

Do not call this in an rune::GameObject constructor. The spriteParent pointer must be resolved first.

---

The documentation for this class was generated from the following files:

• animator.h
• animator.cpp
