rune::Transform Class Reference

A data structure that contains position, size, and rotation. More...

#include <transform.h>

Inheritance diagram for rune::Transform:

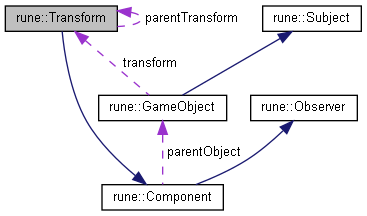

Collaboration diagram for rune::Transform:

Public Member Functions
	Transform (rune::Vec3 newPosition=rune::Vec3(0, 0, 0), rune::Vec3 newScale=rune::Vec3(1, 1, 1), rune::Vec3 newRotation=rune::Vec3(0, 0, 0))
	Default constructor. More...
virtual void	update () override
	Override of the update component function to update the position of the transform if there is a parent Transform.
void	setScale (rune::Vec3)
	Set the scale vector. More...
void	setScaleX (double)
	Set the X scale. More...
void	setScaleY (double)
	Set the Y scale. More...
void	setScaleZ (double)
	Set the Z scale. More...
void	setPosition (rune::Vec3)
	Set the position vector. More...
void	setPositionX (double)
	Set the X position. More...
void	setPositionY (double)
	Set the Y position. More...
void	setPositionZ (double)
	Set the Z position. More...
void	setRotation (rune::Vec3)
	Set the rotation vector. More...
void	setRotationX (double)
	Set the X rotation. More...
void	setRotationY (double)
	Set the Y rotation. More...
void	setRotationZ (double)
	Set the Z rotation. More...
void	setLocalPosition (rune::Vec3 newLocalPosition)
	Set the position of the transform relative to the transform parent. More...
rune::Vec3	getPosition (void)
	Get the position of the transform in world coordinates. More...
rune::Vec3	getScale (void)
	Get the scale factor of the transform. More...
rune::Vec3	getRotation (void)
	Get the rotation vector of the transform. More...
rune::Vec3	getLocalPosition (void)
	Get the position of the transform with respect to the parent object. More...
void	setBounds (rune::Vec2 newBounds)
	Set the boundaries of the current renderer. More...
rune::Vec2	getBounds (void)
	Get the boundaries of the current renderer. More...
Public Member Functions inherited from rune::Component
	Component ()=default
	Default constructor to set up.
virtual void	awake ()
	A function that will be called before all other start functions but after the component has been assigned to a GameObject.
virtual void	start ()
	A function for each component that is called once at the beginning of the components lifetime.
virtual void	fixedUpdate ()
	A function for each component that is called once every physics update.
void	setParent (GameObject *newParent)
	A function to set the pointer to the parent rune::GameObject for each component. More...
void	setEnable (bool newEnable)
	Enable or disable the component. More...
bool	isComponentEnabled (void)
	Gets whether or not the current component is enabled.
void	onNotify (Signal const &signal) override
	A virtual method to be overridden by a concrete implementation of the observer class.

Public Attributes
Transform *	parentTransform = nullptr
	Pointer to parent object.

Additional Inherited Members
Protected Attributes inherited from rune::Component
GameObject *	parentObject = nullptr
	The rune::GameObject that this component is attached to. If not attached to a rune::GameObject this will equal nullptr.
bool	isEnabled = true
	Whether or not the component is currently enabled. If not enabled, update function will not be called.

Detailed Description

A data structure that contains position, size, and rotation.

Author

Thomas Montano

Date

June 9 2020

Constructor & Destructor Documentation

Transform()

rune::Transform::Transform	(	rune::Vec3	newPosition = rune::Vec3(0,0,0),
		rune::Vec3	newScale = rune::Vec3(1,1,1),
		rune::Vec3	newRotation = rune::Vec3(0,0,0)
	)

Default constructor.

Parameters

newPosition	The position of the Transform.
newScale	The scale of the Transform.
newRotation	the rotation of the Transform.

Member Function Documentation

getBounds()

rune::Vec2 rune::Transform::getBounds

(

void

)

Get the boundaries of the current renderer.

Returns

The boundary of the Transform in pixel coordinates.

getLocalPosition()

rune::Vec3 rune::Transform::getLocalPosition

(

void

)

Get the position of the transform with respect to the parent object.

Returns

The position of the Transform with respect to the parent Transform.

getPosition()

rune::Vec3 rune::Transform::getPosition

(

void

)

Get the position of the transform in world coordinates.

Returns

The position vector of the Transform.

getRotation()

rune::Vec3 rune::Transform::getRotation

(

void

)

Get the rotation vector of the transform.

Returns

The rotation of the Transform.

getScale()

rune::Vec3 rune::Transform::getScale

(

void

)

Get the scale factor of the transform.

Returns

The scale of the Transform.

setBounds()

void rune::Transform::setBounds

(

rune::Vec2

newBounds

)

Set the boundaries of the current renderer.

Parameters

newBounds

The new boundary of the Transform.

setLocalPosition()

void rune::Transform::setLocalPosition

(

rune::Vec3

newLocalPosition

)

Set the position of the transform relative to the transform parent.

Parameters

newLocalPosition

The new position of the Transform with respect to the parent Transform.

setPosition()

void rune::Transform::setPosition

(

rune::Vec3

newPosition

)

Set the position vector.

Parameters

newPosition

The new position vector of the Transform.

setPositionX()

void rune::Transform::setPositionX

(

double

newX

)

Set the X position.

Parameters

newX	The new X position of the Transform.

setPositionY()

void rune::Transform::setPositionY

(

double

newY

)

Set the Y position.

Parameters

newY	The new Y position of the Transform.

setPositionZ()

void rune::Transform::setPositionZ

(

double

newZ

)

Set the Z position.

Parameters

newZ	The new Z position of the Transform.

setRotation()

void rune::Transform::setRotation

(

rune::Vec3

newRotation

)

Set the rotation vector.

Parameters

newRotation

The new rotation vector of the Transform.

setRotationX()

void rune::Transform::setRotationX

(

double

newX

)

Set the X rotation.

Parameters

newX	The new X rotation of the Transform.

setRotationY()

void rune::Transform::setRotationY

(

double

newY

)

Set the Y rotation.

Parameters

newY	The new Y rotation of the Transform.

setRotationZ()

void rune::Transform::setRotationZ

(

double

newZ

)

Set the Z rotation.

Parameters

newZ	The new Z rotation of the Transform.

setScale()

void rune::Transform::setScale

(

rune::Vec3

newScale

)

Set the scale vector.

Parameters

newScale

The new scale of the Transform.

setScaleX()

void rune::Transform::setScaleX

(

double

newX

)

Set the X scale.

Parameters

newX	The new X scale of the Transform.

setScaleY()

void rune::Transform::setScaleY

(

double

newY

)

Set the Y scale.

Parameters

newY	The new Y scale of the Transform.

setScaleZ()

void rune::Transform::setScaleZ

(

double

newZ

)

Set the Z scale.

Parameters

newZ	The new Z scale of the Transform.

---

The documentation for this class was generated from the following files:

• transform.h
• transform.cpp
