rune::ParticleEmitter Class Reference

Class responsible for creating particle emitters and managing the creation of particles. More...

#include <particleEmitter.h>

Inheritance diagram for rune::ParticleEmitter:

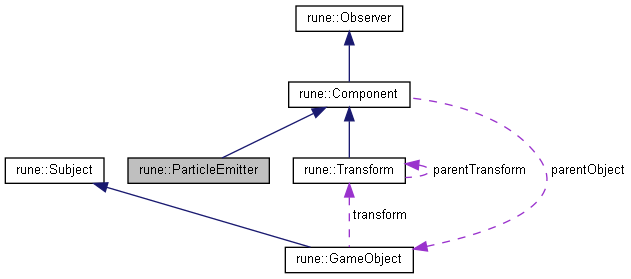

Collaboration diagram for rune::ParticleEmitter:

Public Member Functions
	ParticleEmitter (rune::Vec2 startPos, rune::Vec2 initVel, rune::Color color, int dissolutionRate=5, rune::Vec2 gravity=rune::Vec2(0, 0))
	Overloaded draw function to render particles to the screen. More...
void	setDissolutionRate (double rate)
	The amount of time in seconds that a particle will exist before it gets destroyed. More...
void	setGravity (rune::Vec2 gravity)
	Sets the gravity that a particle will be subjected to. More...
void	fuel (int particles)
	Spawn particles from the particles emitter. More...
void	update (double dT)
	Update the position of the particles based on velocity and gravity. More...
void	setCanvasSize (rune::Vec2)
void	setPosition (rune::Vec2)
Public Member Functions inherited from rune::Component
	Component ()=default
	Default constructor to set up.
virtual void	awake ()
	A function that will be called before all other start functions but after the component has been assigned to a GameObject.
virtual void	start ()
	A function for each component that is called once at the beginning of the components lifetime.
virtual void	update ()
	A function for each component that is called every frame.
virtual void	fixedUpdate ()
	A function for each component that is called once every physics update.
void	setParent (GameObject *newParent)
	A function to set the pointer to the parent rune::GameObject for each component. More...
void	setEnable (bool newEnable)
	Enable or disable the component. More...
bool	isComponentEnabled (void)
	Gets whether or not the current component is enabled.
void	onNotify (Signal const &signal) override
	A virtual method to be overridden by a concrete implementation of the observer class.

Additional Inherited Members
Protected Attributes inherited from rune::Component
GameObject *	parentObject = nullptr
	The rune::GameObject that this component is attached to. If not attached to a rune::GameObject this will equal nullptr.
bool	isEnabled = true
	Whether or not the component is currently enabled. If not enabled, update function will not be called.

Detailed Description

Class responsible for creating particle emitters and managing the creation of particles.

Author

Thomas Montano

Date

March 2 2020

Constructor & Destructor Documentation

ParticleEmitter()

rune::ParticleEmitter::ParticleEmitter	(	rune::Vec2	startPos,
		rune::Vec2	initVel,
		rune::Color	color,
		int	dissolutionRate = 5,
		rune::Vec2	gravity = rune::Vec2(0,0)
	)

Overloaded draw function to render particles to the screen.

Default constructor for a particle emitter that establishes position, color, and velocity constraints.

Parameters

startPos	The location in world coordinates of where the particle emitter should spawn particles.
initVel	The initial velocity that particles should be subjected to.
color	The base color of the particles.
dissolutionRate	The time in seconds that a particle should exist before it gets deleted.
gravity	The gravity vector each particle will be subjected to.

Member Function Documentation

fuel()

void rune::ParticleEmitter::fuel

(

int

particles

)

Spawn particles from the particles emitter.

Parameters

particles

The number of particles that should be generated.

setCanvasSize()

void rune::ParticleEmitter::setCanvasSize

(

rune::Vec2

canvas

)

Parameters

canvas

A vector describing the area that a particle will be allowed to exist in.

setDissolutionRate()

void rune::ParticleEmitter::setDissolutionRate

(

double

rate

)

The amount of time in seconds that a particle will exist before it gets destroyed.

param window Overloaded draw function for rendering the particles to the screen.

Parameters

rate	The amount of time in seconds that a particle should exist before being deleted.

setGravity()

void rune::ParticleEmitter::setGravity

(

rune::Vec2

gravity

)

Sets the gravity that a particle will be subjected to.

Parameters

gravity

The gravity vector that each particle will be subjected to.

setPosition()

void rune::ParticleEmitter::setPosition

(

rune::Vec2

newPos

)

Parameters

newPos

The new position that the particle emitter should start generating particle from.

update()

void rune::ParticleEmitter::update

(

double

dT

)

Update the position of the particles based on velocity and gravity.

Parameters

dT	The amount of time that has passed since the last update call, used to update position of particles.

---

The documentation for this class was generated from the following files:

• particleEmitter.h
• particleEmitter.cpp
